Design

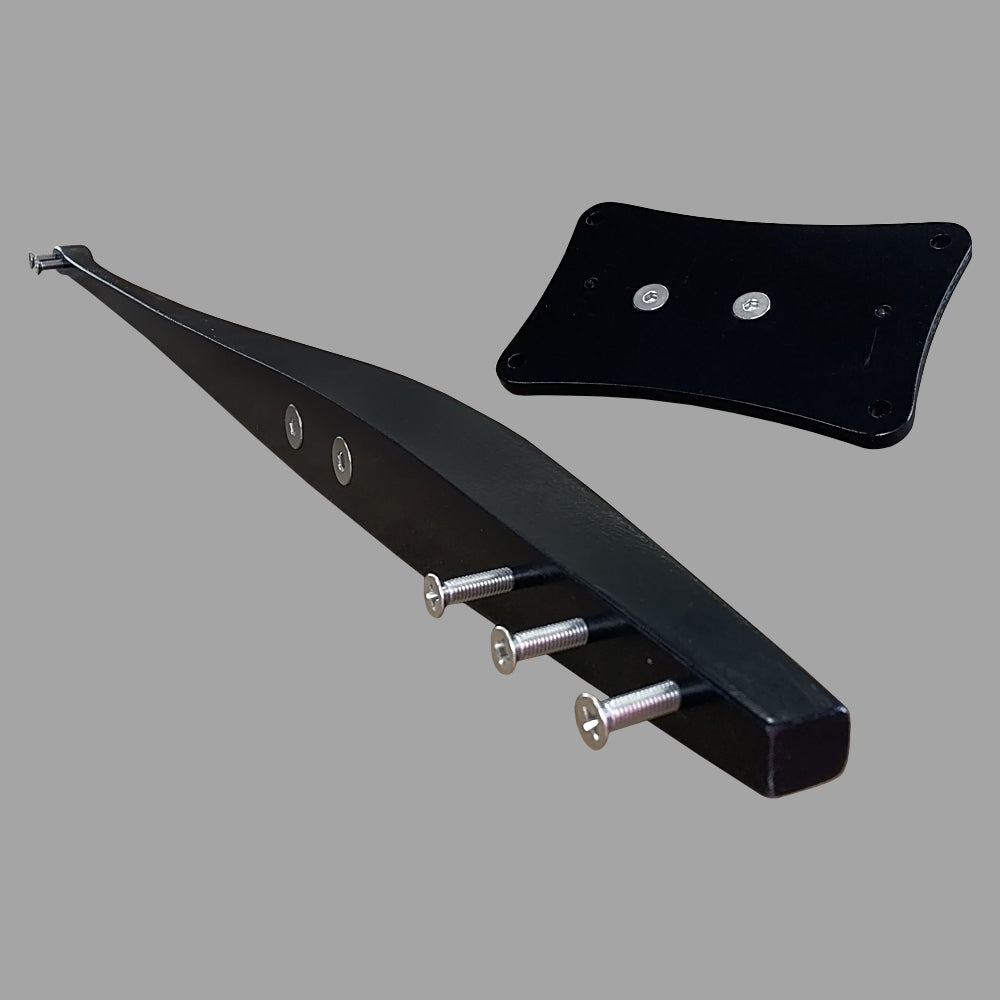

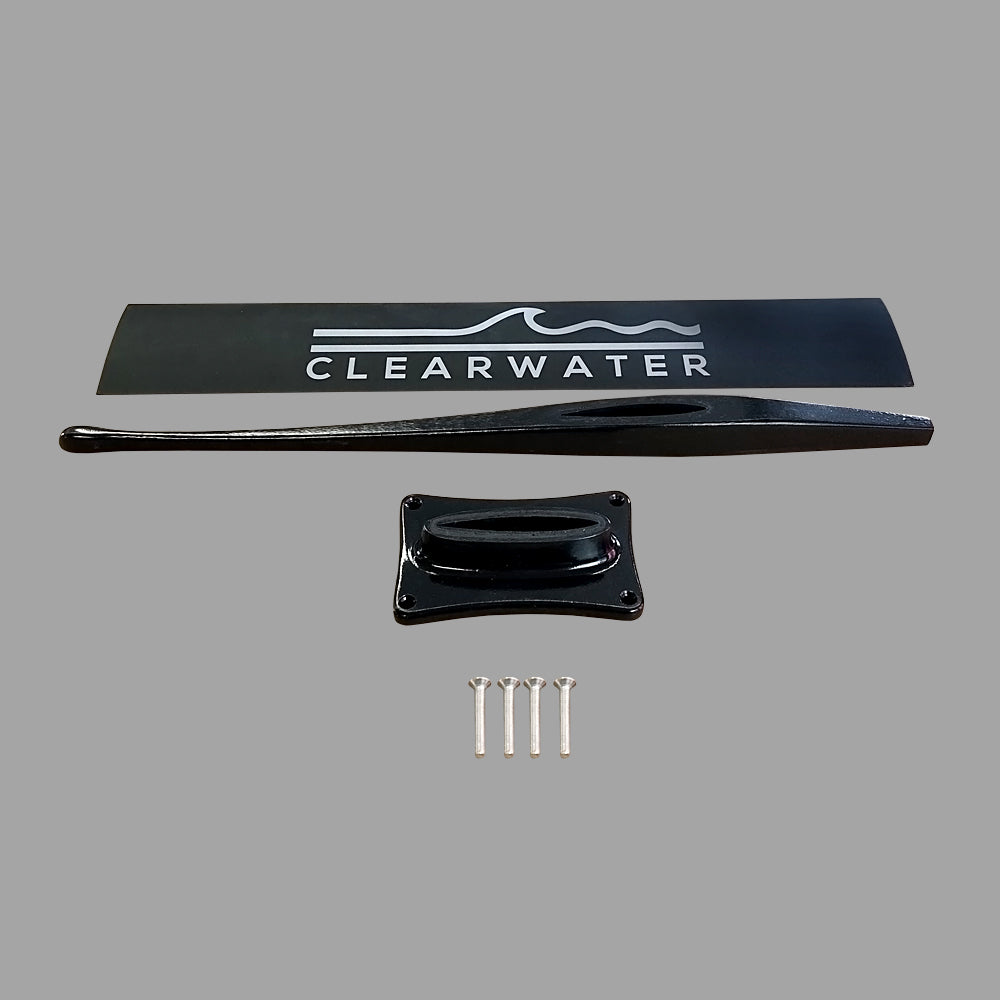

The modular "VERSION 4" aluminum frame allows for complete disassembly while providing an incredibly stiff and dynamic frame. Paired with the precision CNC milled wings, expect an amazing performing frame with the ease and convenience of disassembly. Specific to this design is a zero tolerance carbon fiber sleeve on both the fuselage and base where mast inserts. These sleeves are molded directly from the mast profile for an insanely tight fit! The aluminum kits certainly make the easiest and fastest foil builds! Simply choose your preferred size of wing and stabilizer.

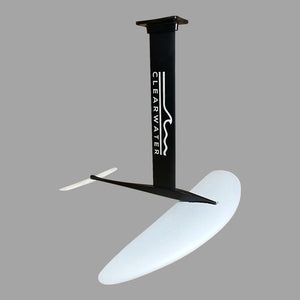

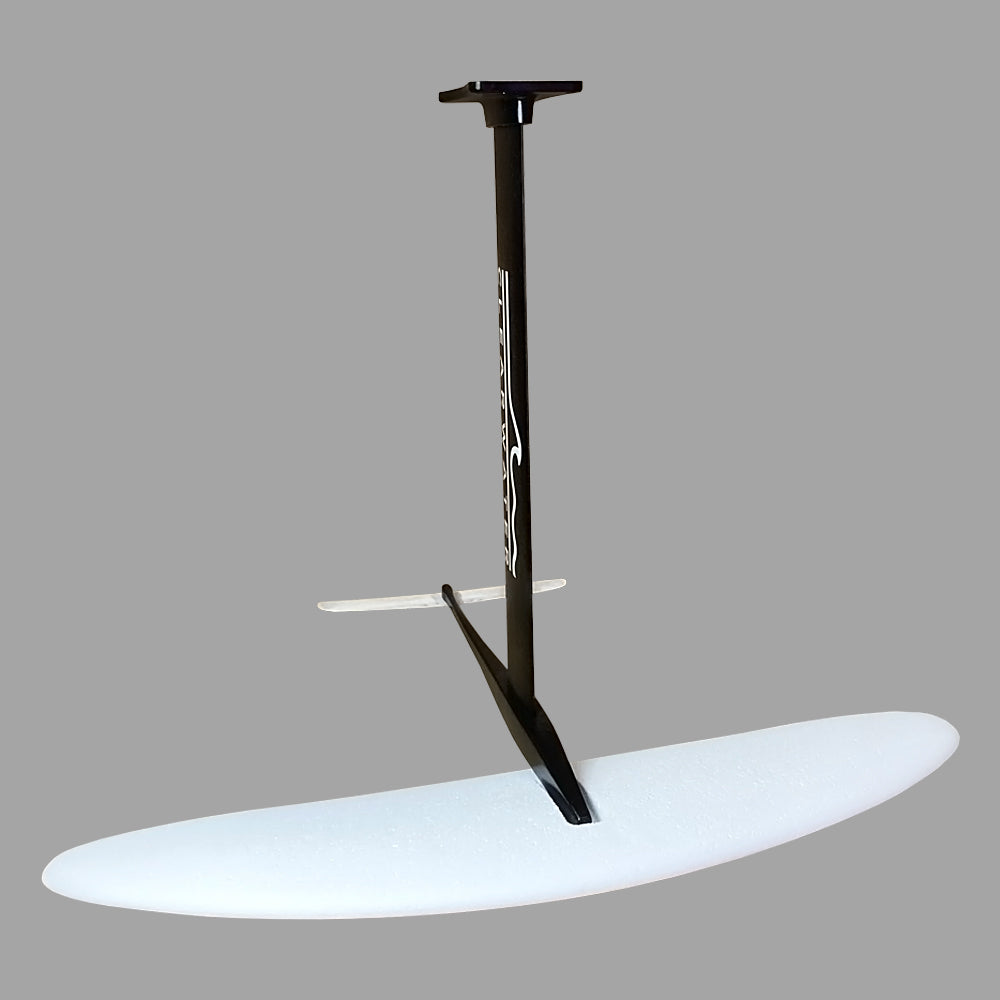

 The 2300 kit is the ultimate low speed high lift machine. If running off a dock and pumping away is the goal, this foil is the one for you. Lifting off around 5mph (8kph) this wing can hang in the smallest of waves. Riders at or above 170lbs (77kg) can pump away until your legs burn out!

Specs

• 27" (70cm) mast
• 2300 cm^2 front wing
• Stabilizer (choose size)
• 90 mm mount holes (industry standard)
• Eps wing core + wooden stabilizer
• Stainless connection hardware

Build

Tools needed, a utility knife and sandpaper thats it! (Building materials option available). The aluminum frame allows for a much easier and faster build. Follow along with the instructional video that highlights every last detail and you can have this foil completed in a weekend. The easy, simple, step by step process will eliminate any construction concerns.
