High Aspect Wings
Design
Computer designed with a thin foil section, these high aspect wings pack a lot of performance! High aspect wings have found great use in the foil world to enable crazy glides and infinite pumps. The name of the game is thin and skinny with slight anhedral . The universal slot machined into the mounting center make it easy to adapt these wings onto most fuselages on the market. A gentle anhedral curve helps to keep the wing tips lower while still maximizing lifting surface area.
Details

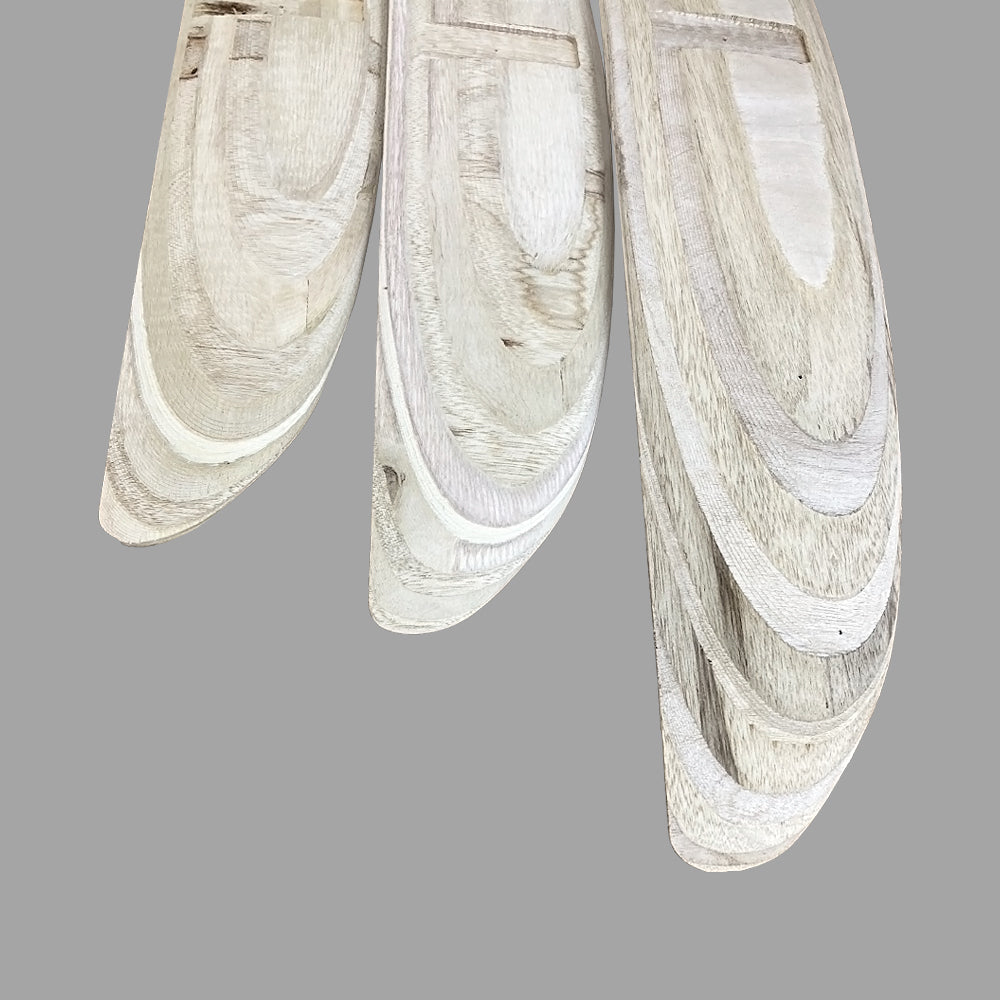

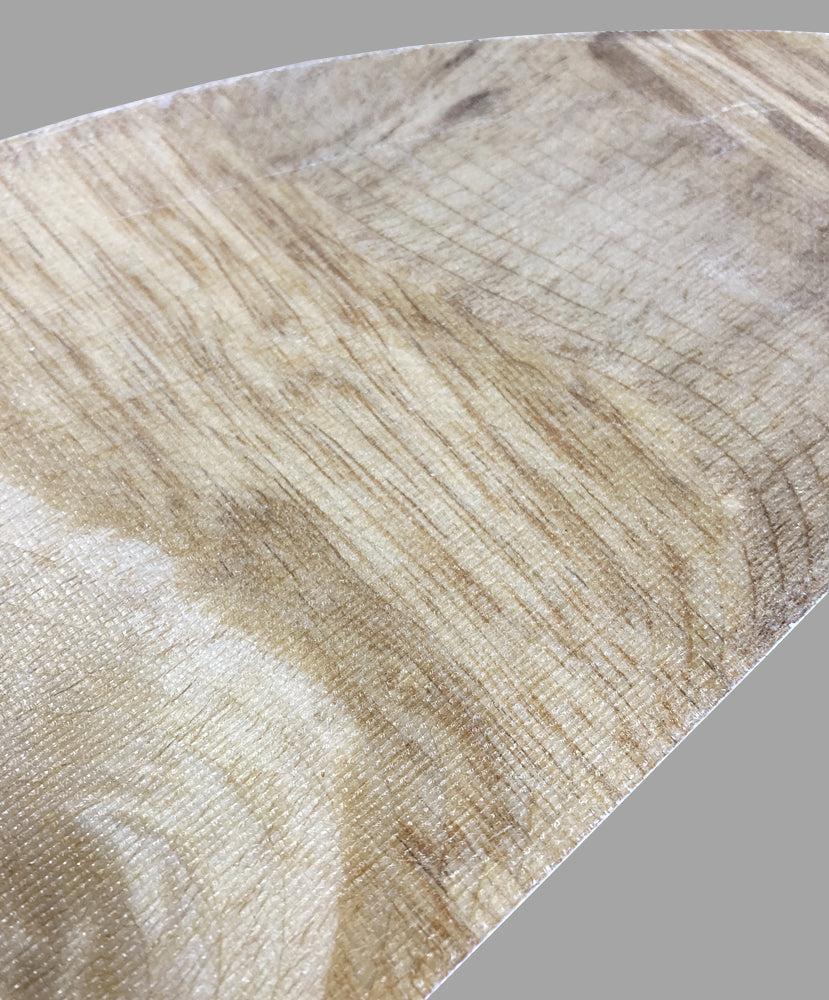

All wing cores are precision CNC cut from hardwood ply. This particular core material has proven to be a great balance of strength, weight, and price. Every wing has a layer of fiberglass and epoxy which allows the trailing edge to be machined extremely thin... exactly how it should be.
Sizes
1150
- 1150mm wing span
- 180mm chord at center
- 1620cm^2 area
- 45mm wide mount slot
- Slowest flying, most lift, small wave, best for dock starts and pumping!
915
- 915mm wing span
- 155mm chord at center
- 1280cm^2 area
- 45mm wide mount slot
- Medium range speed, moderate lift, faster riding/waves, great for lighter riders under 160lbs, faster turns. Pumps faster with more effort.
800
- 800mm wing span
- 150 chord at center
- 886cm^2 area
- 45mm wide mount slot
- High speed, fastest riding, awesome for kitefoiling, windfoiling, fast turns with snappy response.
