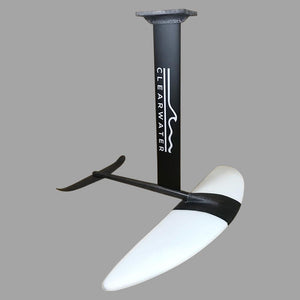

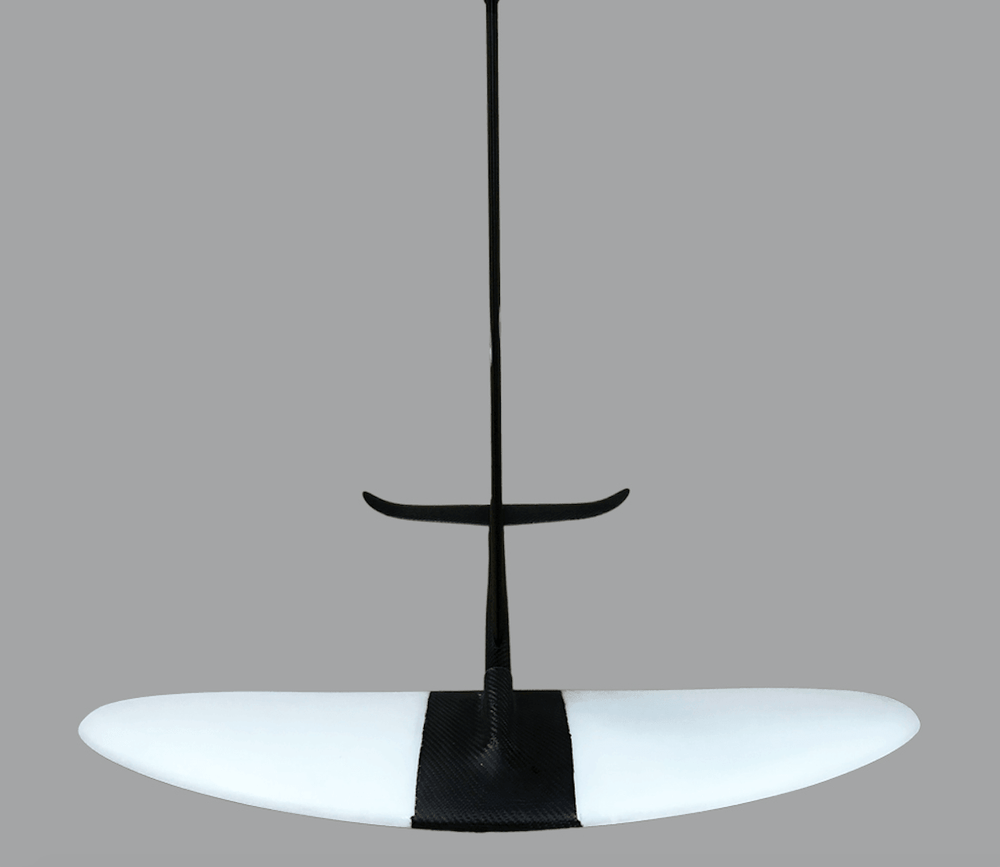

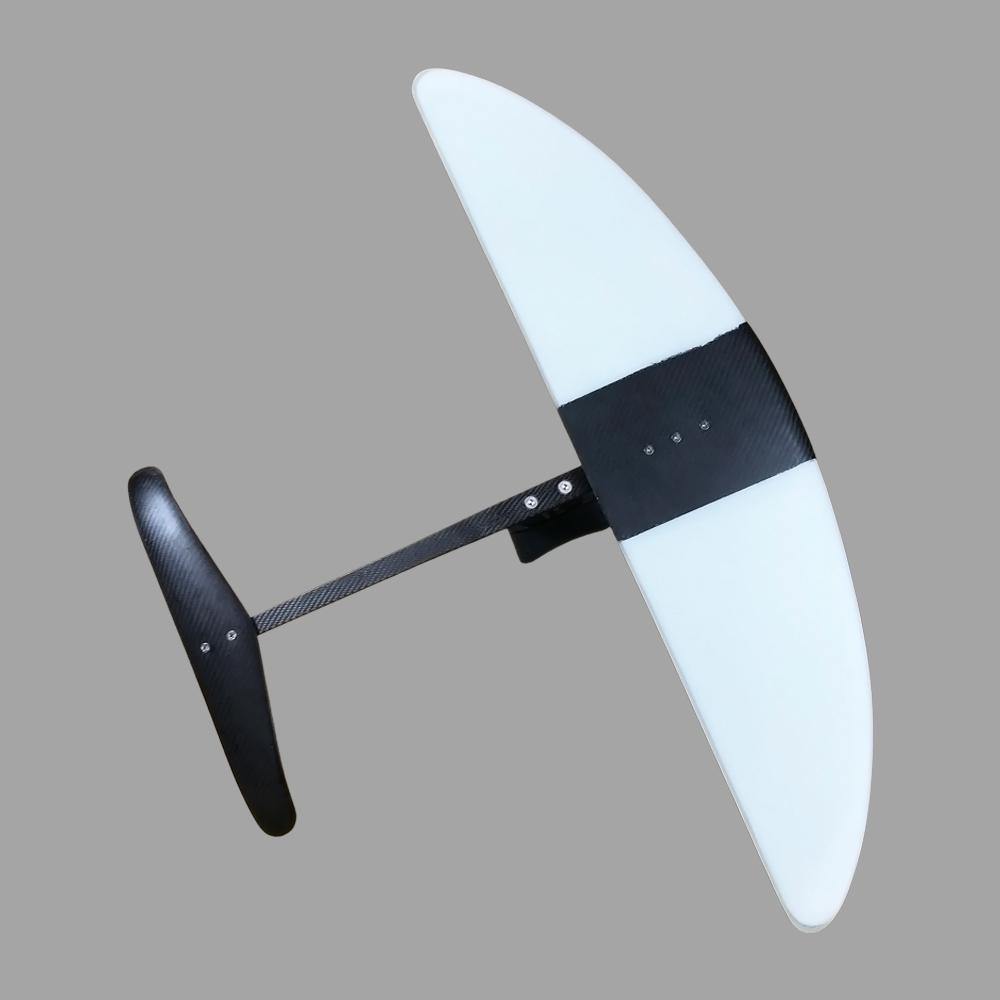

Carbon series 2300
Built from the ground up in the Clearwater shop, the carbon series comes complete and ready to ride. Simply bolt the carbon mount and fuselage to the aluminum mast, fit on the wings, and find water! The carbon series wings all feature an easy riding medium aspect ratio coupled with a high lift foil section. The downturned tips provide extra stability. The 2300 is a high lift machine. If running off of a dock and pumping away is the goal, this foil is the one for you. Lifting off around 5mph (8kph), this wing can hang in smaller waves. Riders at or above 170 lbs (77kg) can pump away until their legs burn out!
- Pumps at lower speeds
- Sweeping turns
- Less maneuverable than the 1500
- Rides medium to slow speeds
- 29" (73 cm) aluminum mast
- 2300 cm^2 glass/carbon front wing
- 17" (43 cm) carbon stabilizer
- 7.1 (3.2 kg) finished
- 90mm carbon mount (industry standard)
- Stainless M8/M6 bolts for assembly
Things are done differently in our manufacturing process to provide parts that fit together better. The carbon mount plate is molded directly from mast sections to create an extremely tight fitting connection. A similar process is used in the wing connection. Each wing and carbon fuselage are built together as a pair, and remain that way. The wing mount is directly molded around the paired fuselage to create an exact, zero tolerance fitted wing. The bolts simply keep it in place.
